RF Microwave Pyramidal Antenna test Absorber

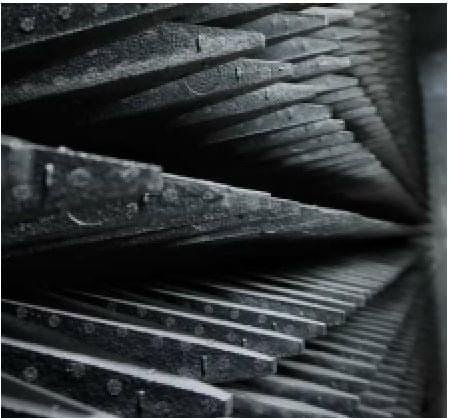

Broadband Polypropylene RF Microwave Absorber

DMC-PP-MI series are high performance Polypropylene RF Microwave absorber covering wide band frequency range. The appearance and characteristics are similar to HY series, but PP-MI series has been specifically designed for best performance at Microwave frequency range. Therefore, this PP-MI series of absorbers are highly preferred for Antenna Pattern Measurement (APM), Compact Antenna Test Range (CATR), Radar Cross Section (RCS) and Electronic Warfare Test (EWT) application.

Broadband Polypropylene RF Microwave Absorber features:

Frequency range 80MHz to 100GHz
Typical reflectivity as high as -50dB
Plug and Pull install
Power handling capacity 4.8kW/m², 1353 V/m CW Radiated field strength
Fire Retardant per NRL-8093 1,2,3, UL 94:2013, HBF and DIN 4102 and Class B2
Continuous working temperature up-to 120°C
Clean Room suitable per ISO 14644 Class5
Water Resistant per GB/T 4208-2017
RoHS and REACH Compliant
Zero Carbon dust

Part number reference:

DMC-PP-PY-MI-300, DMC-PP-PY-MI-500, DMC-PP-PY-MI-750

Datasheet

Request Quote

TYPICAL REFLECTIVITY AT NORMAL INCIDENCE OVER FREQUENCY RANGE IN dB

Model Number	80 MHz	250 MHz	500 MHz	1 GHz	3 GHz	5 GHz	10 GHz	18 GHz	40 GHz	100 GHz
DMC-PP-PY-MI-300	1	24	29	35	49	49	50	50	50	50
DMC-PP-PY-MI-500	7	29	35	45	50	50	50	50	50	50
DMC-PP-PY-MI-750	10	32	38	47	50	50	50	50	50	50
DMC-PP-PY-MI-1000	11	35	40	45	55	55	55	55	55	47
DMC-PP-PY-MI-1200	16	40	45	50	55	55	55	55	55	47

DMC-PP-PY-MI-300

High Power Pyramidal RF Microwave Absorber Cones

DMC-PP-PY-MI-500

DMC-PP-PY-MI-1200

Frequently Asked Questions

What is a polypropylene microwave absorber?

A polypropylene microwave absorber is a material designed to absorb electromagnetic waves in RF and microwave frequencies.

What frequency range do DMCRF polypropylene absorbers support?

DMCRF polypropylene microwave absorbers support a wide frequency range from 80 MHz to 100 GHz.

Where are polypropylene microwave absorbers typically used?

They are widely used in antenna test chambers, EMC testing facilities, radar testing labs, and wireless device testing environments.

What reflectivity performance can be expected?

High-performance absorbers can achieve reflectivity levels as low as −50 dB or better.

Are DMCRF microwave absorbers easy to install?

Yes, DMCRF absorbers use a plug-and-pull installation design for easy mounting.

Can these absorbers handle high RF power?

Yes, they are designed for high-power applications with power handling up to 4.8 kW/m².

Are polypropylene absorbers suitable for clean rooms?

Yes, these absorbers are designed to meet clean room standards such as ISO 14644 Class 5.

What are the advantages of polypropylene absorbers?

They offer high durability, water resistance, and excellent RF absorption performance.

Why choose DMCRF polypropylene microwave absorbers?

DMCRF provides high-quality absorbers designed for professional RF testing chambers.

How are microwave absorbers maintained?

Maintenance usually involves regular inspection and gentle cleaning using vacuum or air.
