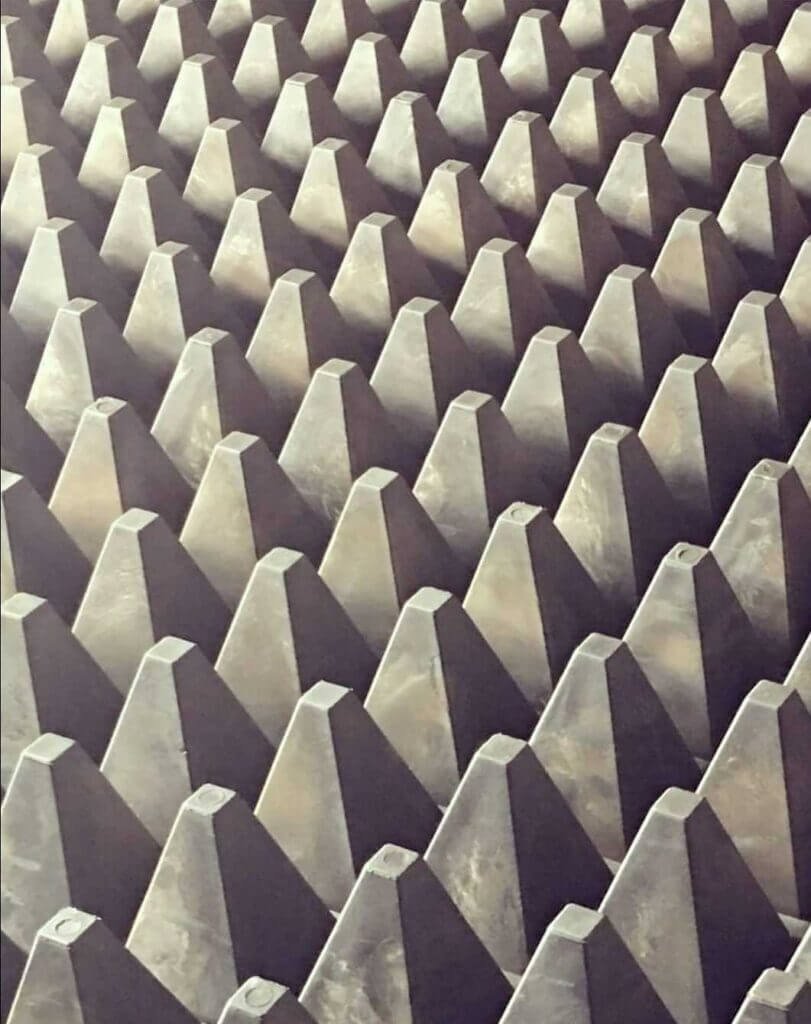

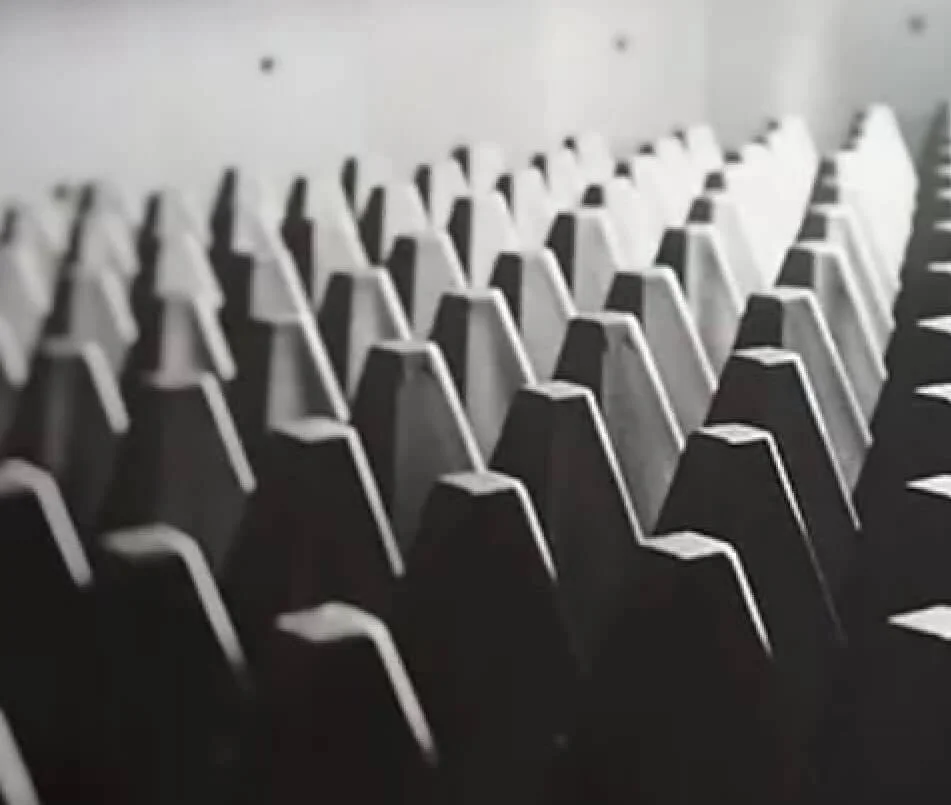

EMC Ferrite Absorber

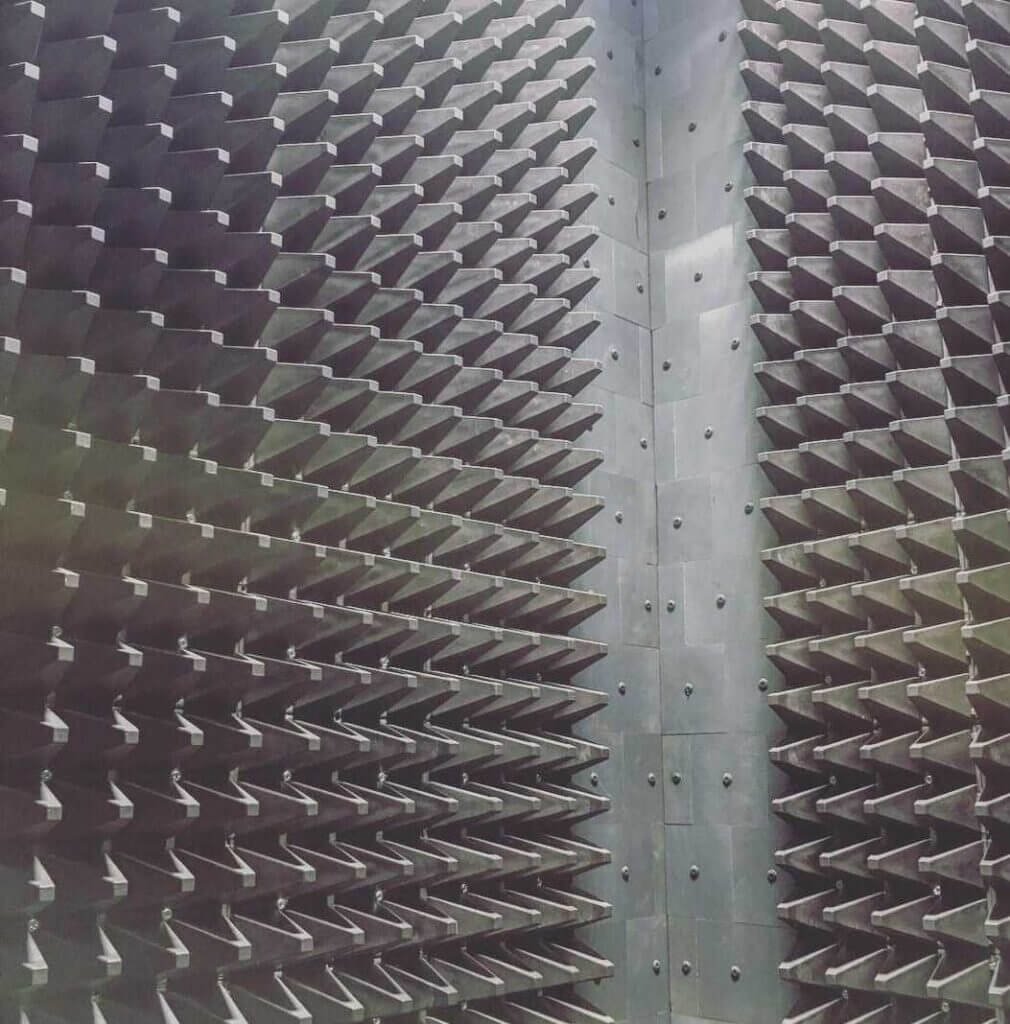

EMC Ferrite absorbers are used with combination of ferrite tiles. It has operating frequencies from 30 MHz to 40 GHz and thanks to its compact size, the Ferrite Series is suitable for maximizing chamber internal space.

Frequency range 30MHz to 40GHz
Typical reflectivity as high as -50dB
Power handling capacity 1.8kW/m², 1353 V/m CW Radiated field strength
Fire Retardant per NRL-8093 1,2,3, UL 94:2013, HBF and DIN 4102 and Class B2
Continuous working temperature up-to 120°C
Clean Room suitable per ISO 14644 Class5
Water Resistant per GB/T 4208-2017
RoHS and REACH Compliant
Zero Carbon dust

Part number reference:
DMC-FC-PY-HY-80, DMC-FC-PY-HY-250

Datasheet

Request Quote

TYPICAL REFLECTIVITY AT NORMAL INCIDENCE OVER FREQUENCY RANGE IN dB

Model Number	30 MHz	50 MHz	100 MHz	500 MHz	1 GHz	3 GHz	5 GHz	10 GHz	18 GHz	40 GHz
DMC-FC-PY-HY-80	22	23	25	20	25	28	30	35	43	45
DMC-FC-PY-HY-250	25	26	30	25	30	33	35	40	50	50

DMC-FC-PY-HY-80

DMC-FC-PY-HY-250

Frequently Asked Questions

What is an EMC ferrite absorber?

An EMC ferrite absorber is a specialized electromagnetic absorbing material used in EMC chambers to reduce RF reflections and improve measurement accuracy.

What frequency range does the EMC ferrite absorber cover?

It typically operates in a wide frequency range from 30 MHz to 40 GHz, supporting both RF and microwave testing applications.

What reflectivity performance can be expected?

High-quality EMC ferrite absorbers can achieve reflectivity up to approximately −50 dB, depending on frequency and chamber configuration.

What is the power handling capability?

The absorber can handle around 1.8 kW/m² RF power, making it suitable for high-power EMC testing environments.

Why are ferrite absorbers used in EMC chambers?

They reduce electromagnetic reflections from chamber surfaces, creating a controlled environment for accurate EMC measurements.

Are ferrite absorbers used with ferrite tiles?

Yes. Ferrite absorbers are often used together with ferrite tiles and foam absorbers to achieve broadband RF absorption.

What safety standards do EMC ferrite absorbers follow?

They comply with NRL-8093, UL-94, and DIN 4102 fire-retardant standards, ensuring safe operation in testing facilities.

What is the operating temperature range?

These absorbers can typically operate at temperatures up to 120 °C without performance degradation.

Are EMC ferrite absorbers environmentally compliant?

Yes. They are RoHS and REACH compliant, meaning they meet environmental safety standards.

How do ferrite absorbers improve EMC testing accuracy?

By absorbing electromagnetic energy instead of reflecting it, ferrite absorbers create a stable RF environment that allows precise EMC and antenna measurements.
