5G FR2 mmWave Over the Air (OTA) Test

Technical Specifications:

  • Frequency Range: DC to 40GHz (Extendable up to 110 GHz)
  • Positioning Accuracy: 0.02°
  • Payload Capacity : 50 lbs- 2000 lbs
  • DUT Test Size: 10cm to 3mtr
  • Elevation : ±180°
  • Azimuth : 360° continuous
  • Roll : 360°



DMC 360 Software features :

  • Passive measurement (magnitude and phase)
  • Active measurement (TRP, EIRP, TIS, EIS, EVM)
  • OTA 2G, 3G, 4G and 5G Testing
  • OTA Bluetooth and BLE TRP & TIS testing
  • OTA GNSS Testing
  • For all bands and common radio systems
    (GSM, UMTS, LTE, LTE-M, NB-IoT) etc

We provide testing according to the 3GPP and ETSI standards including RED conformance testing.

Request Quote

Positioner Model

Gimbal Type Positioner

4

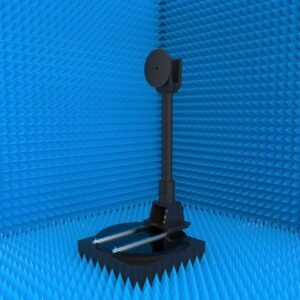

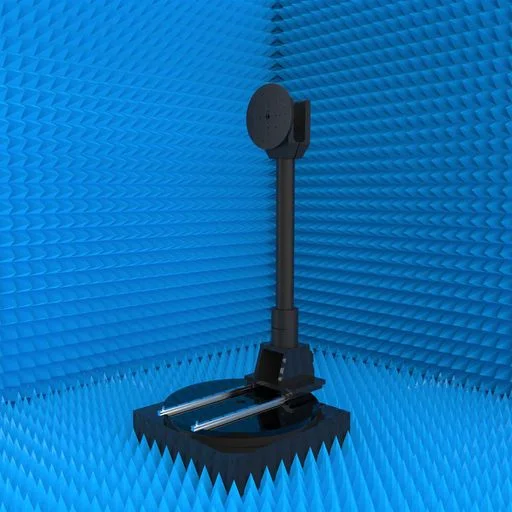

Single Mast Floor Mount Positioner

7

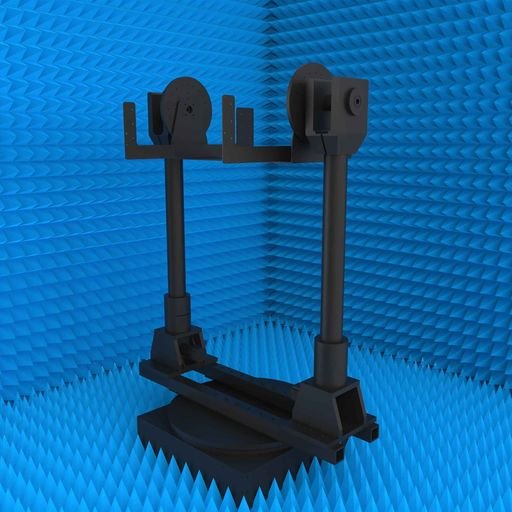

Dual Mast Floor Mount Positioner

1

DMC-XX-YY Series – “XX “ AUT weight Capacity, “YY”- Maximum Operating Frequency

Light Duty Multi Axis Antenna test Positioner

Medium Duty Multi Axis Antenna test Positioner

Heavy Duty Multi Axis Antenna test Positioner

Ultra Heavy Duty Multi Axis Antenna test Positioner

Frequently Asked Questions

1. What is 5G FR2 mmWave OTA testing?

5G FR2 mmWave OTA testing evaluates the wireless performance of 5G devices and antennas operating at millimeter-wave frequencies in a controlled over-the-air test environment.

2. What frequency range does the 5G FR2 mmWave OTA test system support?

The system supports frequencies from DC to 40 GHz and can be extended up to 110 GHz, depending on the test configuration.

3. What is the difference between 5G FR1 and FR2 OTA testing?

FR1 testing focuses on lower-frequency 5G bands, including Sub-6 GHz, while FR2 testing focuses on higher-frequency millimeter-wave bands that require specialized OTA measurement systems.

4. What parameters can be measured during 5G FR2 OTA testing?

The system supports passive measurements such as magnitude and phase, as well as active measurements including TRP, EIRP, TIS, EIS, and EVM.

5. What types of devices can be tested using a 5G FR2 OTA test system?

The system can be used to test 5G devices, mmWave antennas, wireless communication equipment, RF devices, and other devices under test (DUTs).

6. What DUT sizes can the system support?

The system can support DUT sizes ranging from approximately 10 cm to 3 metres, depending on the test configuration.

7. How accurate is the antenna positioning system?

The antenna test system offers positioning accuracy of up to 0.02°, enabling precise OTA and antenna measurements.

8. What positioning options are available for FR2 mmWave testing?

Available options include gimbal-type positioners, single-mast floor-mount positioners, dual-mast floor-mount positioners, and multi-axis antenna test positioners with different payload capacities.

9. Can the system test technologies other than 5G?

Yes. The DMC 360 software supports OTA testing for 2G, 3G, 4G, and 5G, along with technologies such as Bluetooth, BLE, GNSS, GSM, UMTS, LTE, LTE-M, and NB-IoT.

10. Does the 5G FR2 mmWave OTA test system support industry standards?

Yes. The testing solution supports testing according to applicable 3GPP and ETSI standards, including RED conformance testing, based on the required test configuration.
